Revell Germany 1/500 scale "Star Trek Into Darkness" USS Enterprise

RELATED TOPICS: SCI-FI / FANTASY
Kit:04882 // Scale:1/500 // Price:$69.95
Manufacturer:
Revell Germany
Pros:
Good fit and detail, clear windows, extensive decal sheet
Cons:
Clear Bussard collectors must be installed in the warp engines before seam work can be done; color guide for Revell paints only
Comments:
Injection-molded, 91 parts, decals
FSM-NP0314_17
FSM-WB0714_Revell_Startrek_Enterprise_02
FSM-WB0714_Revell_Startrek_Enterprise_03
FSM-WB0714_Revell_Startrek_Enterprise_04
FSM-WB0714_Revell_Startrek_Enterprise_05
FSM-WB0714_Revell_Startrek_Enterprise_06

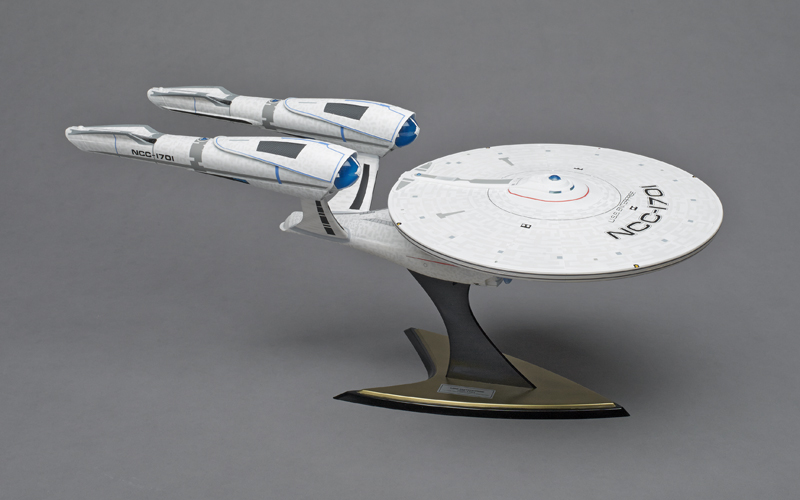

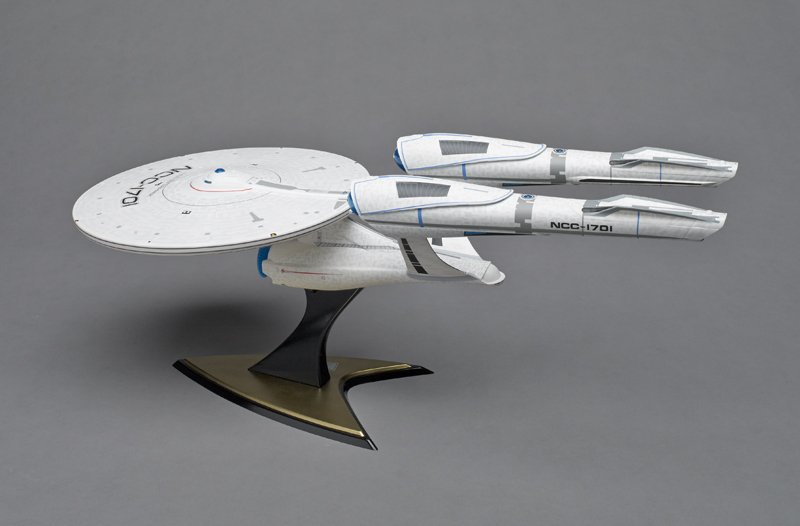

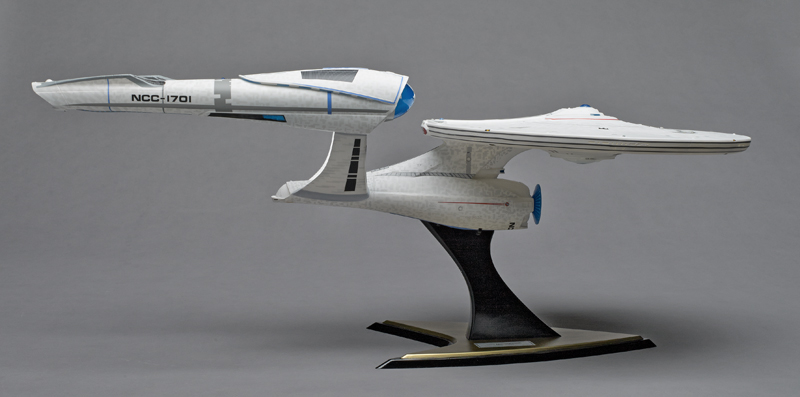

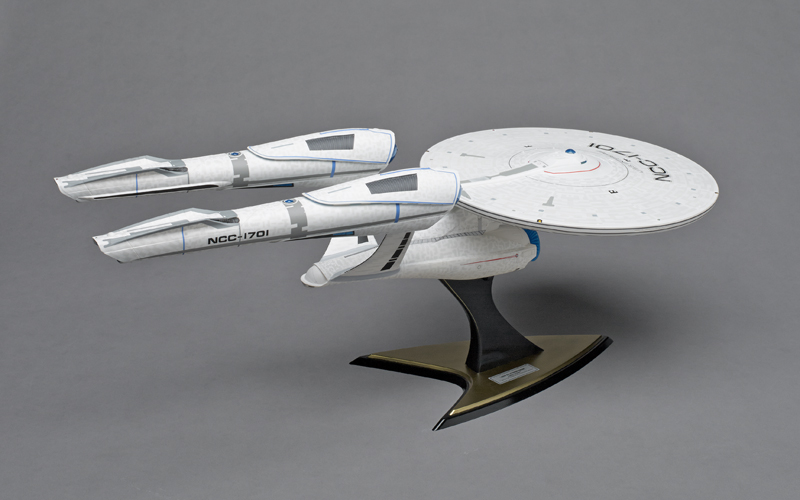

Revell Germany has released a model of the latest starship Enterprise, from the J.J. Abrams-directed 2013 movie "Star Trek Into Darkness." Molded in white and clear plastic, the model features good surface detail. For those who like to light their models, Revell Germany's design makes the job easier. All of the major assemblies are open to wiring, and the main and auxiliary hulls have clear windows.

A large instruction booklet features clear assembly diagrams along with extensive painting and decaling information, and a huge decal sheet covers all of the markings. Not surprisingly, only Revell paints are referenced.

I built my Enterprise in four main subassemblies: main hull, auxiliary hull, and the two warp engines. While adding the parts to the saucer, be sure to check for ejector-pin marks; while none are visible, some can affect the fit of parts. I added all the clear parts to the saucer because I originally planned to assemble it completely before painting. But I wound up leaving it in upper and lower sections until final assembly. Leaving off the clear parts would have eliminated some masking.

I assembled the auxiliary hull completely, leaving off only the main sensor dish (Part B39). All the seams required some work, but the poorest fit was the upper engine pylon (Part H35) and the bottom center piece (H29). I filled seams with Mr. Surfacer 500; poorer fits required a couple of applications. A few dabs of epoxy putty filled minor gaps where the front piece (H36) fit the body.

Assembly of the warp nacelles posed a few challenges because the Bussard collector assemblies and the rear clear parts must be trapped between the nacelle halves. I assembled and painted these parts, leaving the masking on the clear Bussard collector domes to protect them during seam work and painting. I left off the clear bottom details (parts B78 and B79) for final assembly. Stretched sprue filled some slightly larger gaps at the top rear of the nacelles before a final coat of Mr. Surfacer.

Besides updating the look of the Enterprise, the movie reboot also stars the Aztec paint scheme first seen on the refitted starship in “The Motion Picture.”

To create the Aztec scheme for my Enterprise, I turned to Orbital Drydock’s excellent vinyl masking set. I was impressed with the fit of the masks, especially to the complex auxiliary hull and warp engines. While prepping and applying the masks took a lot of time, the effect is worth it. I custom-mixed Tamiya acrylics to an off-white (A color) and light gray (B color). On the main hull, I painted the B color first, applied the masks, then shot the A color. On the auxiliary hull and warp nacelles, I reversed the order: A first, mask, then B.

After a coat of Vallejo clear polyurethane gloss, I applied decals. They are very thin and a bit brittle. I also found that they were difficult to move unless kept wet (I used Micro Set). They responded well to Micro Sol, especially where they needed to conform to complex curves. The numbers for the inside horizontal stripes on the warp nacelles (nos. 71 and 72) are reversed on the diagrams. Just make sure the angle at the front is correctly positioned and you’ll be OK. While most of the decals fit well, I couldn’t get the decals for the inside of the warp engine pylons (nos. 60 and 61) and the trim around the bottom of the pylons (nos. 45, 46, 47, and 49) to fit. So, I masked and painted these areas.

I spent 67 hours on my Enterprise; most of the time went to preparation for and application of the masks and decals. But if you built it right out of the box with a simple all-white scheme, you could produce an attractive replica in much less time.

Because Revell Germany’s license permits selling Trek kits in Europe only, you’ll need to shop around to find this one. But if you’re a Trek modeler, it’s worth the search.

Note: A version of this review appeared in the July 2014 FineScale Modeler.

9
JOIN THE DISCUSSION
Read and share your comments on this article
COMMENT ON THIS ARTICLE

Want to leave a comment?

Only registered members of FineScale.com are allowed to leave comments. Registration is FREE and only takes a couple minutes.

Login or Register now.
9 COMMENTS
Added 11 years ago
ROBERT A BEACH
Scale has been a 'sticky wicket' ever since the reboot came out - so the 1/500 value is to be taken with a grain of salt. Too bad they didn't do a 1/1000 one to match the PL original Trek models... nothing like pulling the rug on the competition!
R/ Robert
PS: is there a 'marketplace resource' here that lists various vendor links, similar to the listings that used to be used in the magazine (still may be...) That would be a great little service.
Added 11 years ago
LEELAN LAMPKINS
No. This kit is not being distributed in the US due to licensing issues. Revell has the license for Star Trek models in Europe. Round2 has the license in the States. The only way to get this kit is to find a seller in the UK our EU through eBay or a seller like Starshipmodeler.com or CutTVmanshop.com here in the US.
Added 11 years ago
STEVE PUDERBAUGH
Please continue to show a photograph of someone holding the model. Otherwise, we would have no idea of how much bench space or display space it will occupy.
Added 11 years ago
RICHARD PACHECO
I got mine on eBay as well. Don't know that I'll attempt the aztecing, but it is a really nice build. It is currently on my to build list.
Added 11 years ago
STEVE PUDERBAUGH
I'm not sure that I like this aztec design. The previous designs felt better. Perhaps it's the color. The architecture of this version is interesting. I hadn't noticed the variations when viewing the movie, but there weren't many prolonged still shots of the craft to view.
I have an old, unscaled version of the original TV series ship, and this scale appears to be close. I think it will make a cool display to place the two versions beside each other.
Added 11 years ago
MR JOHN D ISKER
Beautiful piece of work. Really love how you handled the color scheme.

A note on availability - I bought this kit on eBay from a hobby shop in England, because the licensing of Star Trek kits made by Revell Germany does not allow them to be sold here in the US.

A note on the scale: The Enterprise of the new Star Trek universe is supposedly 2349 feet long, meaning the scale should be 1/1218. 1/500 would be correct if the new Enterprise was the same size as the original TV series ship (approximately 950 feet)
Added 11 years ago
KYLE HOOD
I heard that this kit isn't being distributed in North America. Can anyone verify this, as I wouldn't mind getting my paws on one of these?
Added 11 years ago
DENNIS ROSSKO
Overall a good review but I would have liked to have been told the dimensions of the kit.
Added 11 years ago
THOMAS WALSH
Not bad not bad at all! I have been a Star Trek fan since the original show came on TV. I was not really sure the new movies would pass the test. but they did and the new Enterprise is really cool. You did a wonderful job on this model. I have models of every U.S.S. Enterprise made. I need to get my hands on one of these.
